Engineering Drawing Title-Block Audit Assistant

Engineering Drawing Title-Block Audit Assistant

Reads title-block fields from large drawing packages with OCR and compares revision and approval dates against the drawing index.

Problem / Challenge

Large drawing packages need their title-block data, revision and approval dates, and stamps checked. Normally that means reading every PDF by hand.

Solution

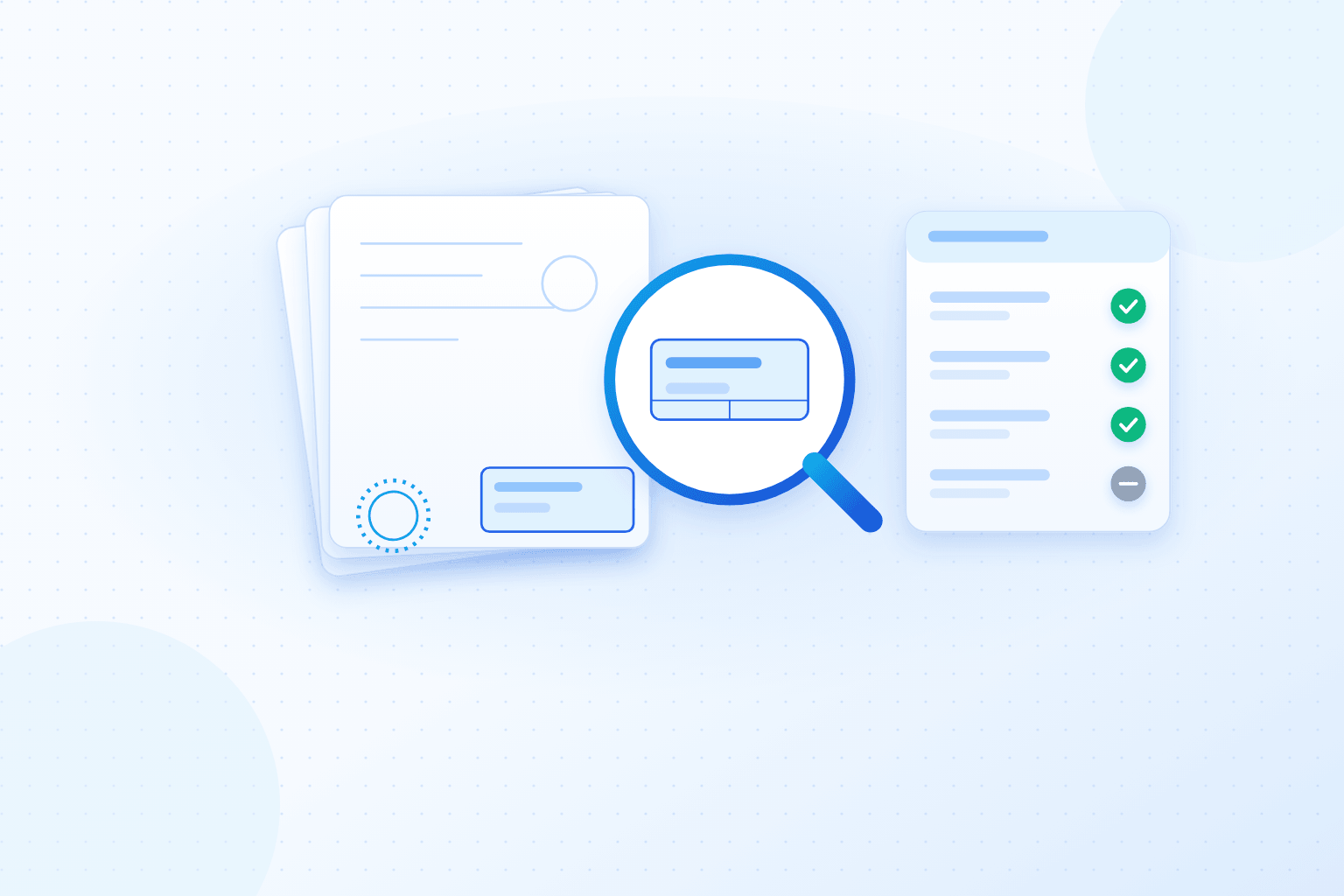

The tool converts PDF pages to images and finds the title block with OpenCV template matching. It reads the fields with Tesseract OCR and compares the extracted dates and values against the drawing index. It can optionally stamp the PDFs with a processing mark, and it writes audit and data-capture CSV files.

How it works

  • Convert PDF pages to images
  • Locate the title block (template matching)
  • OCR the title-block fields
  • Compare against the drawing index
  • Optionally stamp PDFs
  • Write audit CSVs

About this project

This project is from the professional portfolio of Muhammad Umer, Founder & CEO of EaseWorkflow. It is shown as an example of his automation work, not as an EaseWorkflow client engagement. Client and identifying details have been removed.

Results / Outcome

  • Designed to speed up drawing-package checks and title-block data capture.
